Batten UEM

The Emergency Module for LED Batten Luminaires has been designed for easy installation in a range of Kosnic LED batten luminaires. The emergency module will adjust the output within the module’s limits to the level required to operate the luminaire and ensure an operation time of three hours. The battery is replaceable.

Product Code: BEM303

Data Sheet

KEY FEATURES

For Kosnic LED battens, where specified on the batten datasheet
For maintained or non-maintained emergency lighting systems

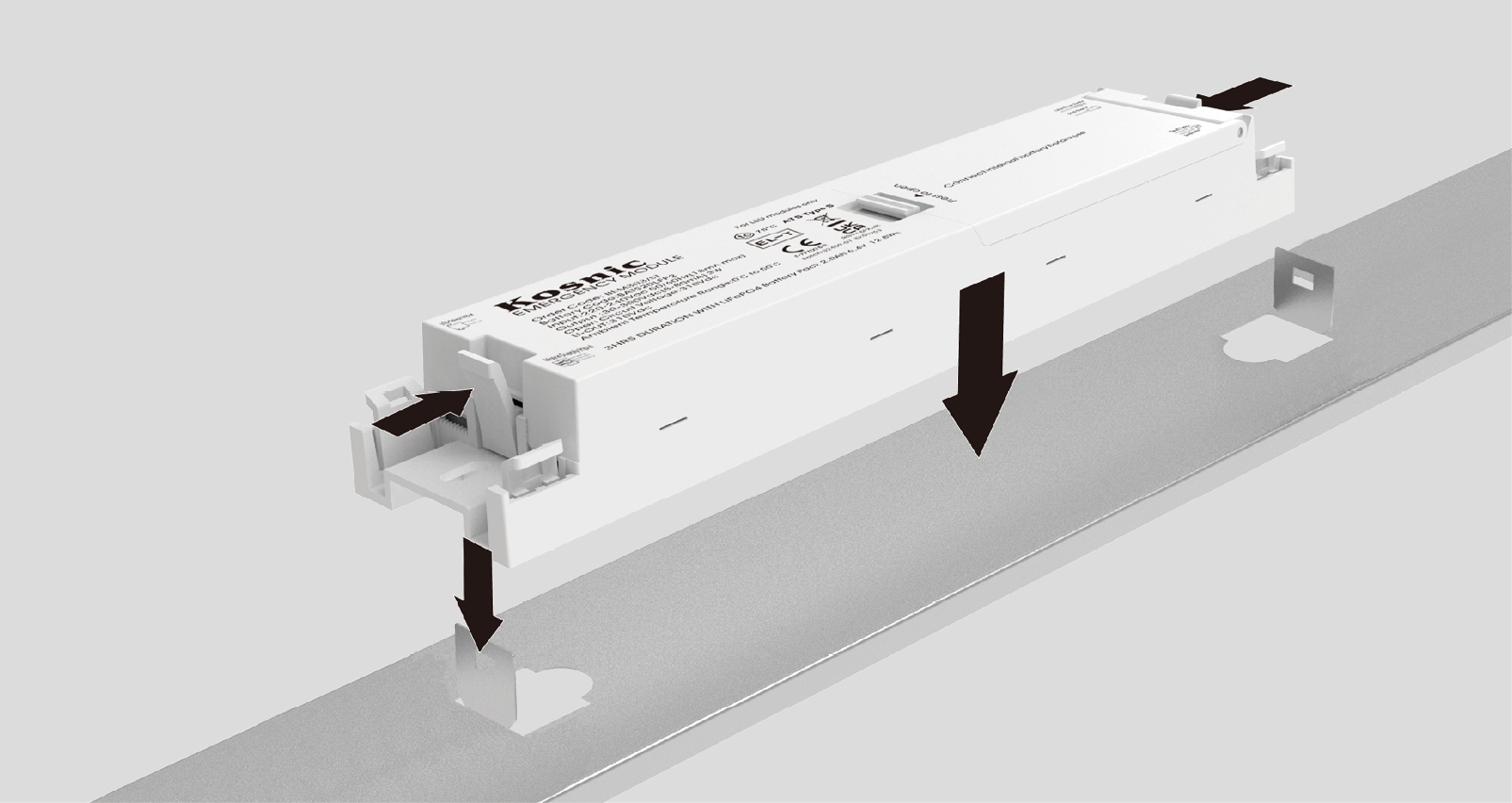

Designed for easy installation
3 hours rated duration
LiFePO4 battery for improved lifespan allowing frequent partial discharge without capacity reduction
Easy battery replacement
Patented adaptive current control
Suitable for LED loads with forward voltage between 30-300Vdc

GENERAL SPECIFICATIONS

Voltage:220-240Vac 50/60Hz

Installation Area:Internal

TECHNICAL SUMMARY

Dimensions:221x43x26
